LaisDcc Decoders Products Range

LaisDcc Decoders Ordering Information:


Stayin Alive Kits Pro

The LaisDcc Stayin Alive Kits Pro are used to supply power to decoders during times of power interruption due to dirty track or problematic track work

It will power an HO Scale locomotive for approximately 6 to 20 seconds (depending on the locomotive and the efficiency of the motor).
It includes a blue and a black wire with which to attach it to a decoder. The blue wire is the positive/DC+, the black wire is the GND. You can use it with sound decoders and mobile decoders.

SKU:860009
Dimensions: 26mm x 11.4mm x 8.8mm

PS: This parts not support current version of LaisDcc Decoders. Will support with future version of decoders that will coming soon.


860010/LaisDcc-Z2

SKU:860010

Interface: NEM651 Color 6 wire+ Blue Wire

Scale: Z/N Scale

Size:13.3mm x 7.3mm x 3.8mm


860011



  • SKU : 860011
  • Interface: 7 Wire (4 Fn Function only decoder. For detailed information, please refer to the Manual and CV list.

860012



  • SKU: 860012
  • Interface: 6 Wire(NEM651). For detailed information, please refer to the Manual and CV list.

860013

  • SKU : 860013
  • Interface: 6Pin(NEM651). For detailed information, please refer to the Manual and CV list.



860014

  • SKU: 860014
  • Interface: 11 Wire. For detailed information, please refer to the Manual and CV list.

860015

  • SKU: 860015
  • Interface: Next18 with 6 Fun. For detailed information, please refer to the Manual and CV list.

860016



  • SKU: 860016
  • Interface: PluX22. For detailed information, please refer to the Manual and CV list.

860018(Replaced by 860020)

860018

  • SKU: 860018
  • Interface: 8 Pin on board (NEM652). For detailed information, please refer to the Manual and CV list.

860019



  • SKU: 860019
  • Interface: 21Pin (21MTC). For detailed information, please refer to the Manual and CV list.

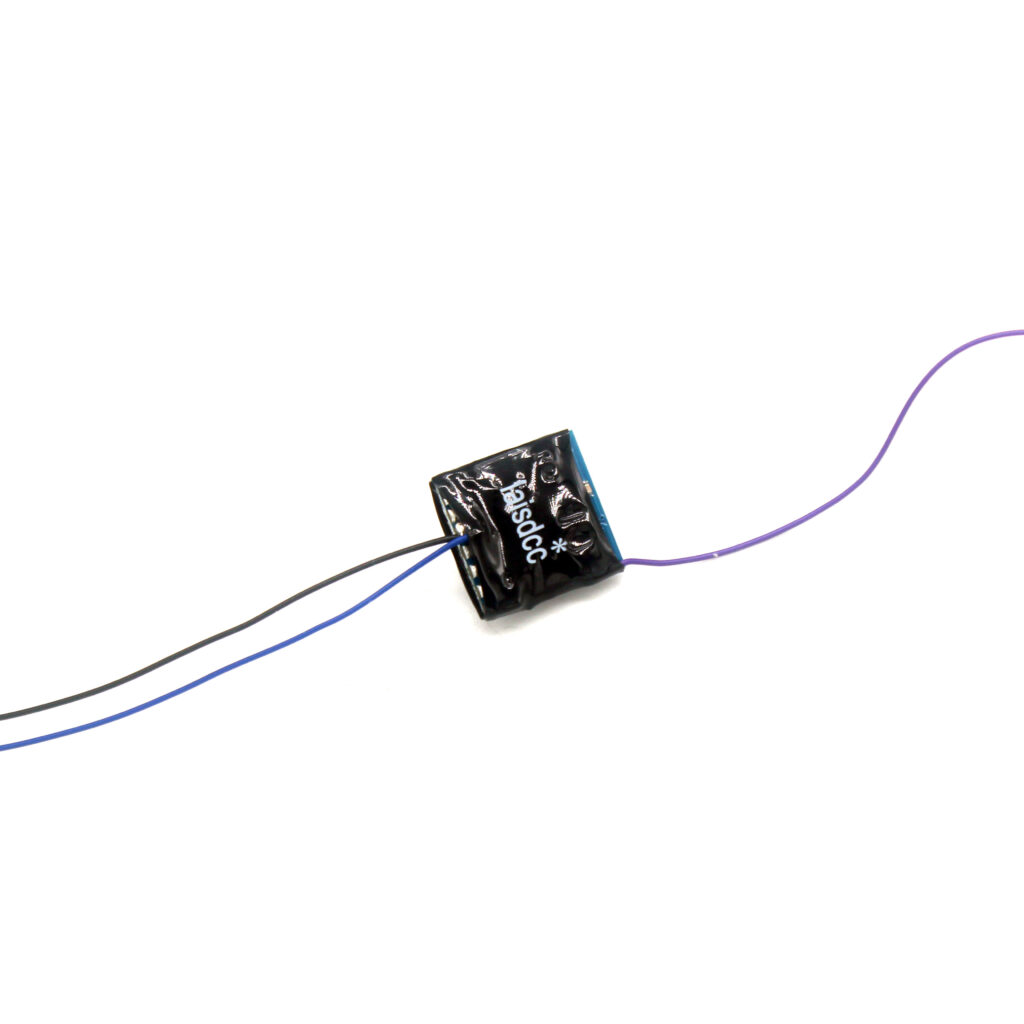

860020

  • SKU : 860020
  • Interface: 8Pin direct+1 wire for Function 2
  • Size:15mm*15mm*3.5mm






860021

  • SKU : 860021
  • Interface: 11 Wire and a NEM652 8pin. For detailed information, please refer to the Manual and CV list.
  • Rating: 1A continuous, 2A peak
  • Scale: HO & N scale
  • Function: 4*100mA
  • Standard: NMRA DCC
  • Not Support: ABC, Railcom, Motorola
  • Brand: LaisDcc
  • Total support of all NMRA/NEM specifications
  • Direct easy connection to exclusive Stay-Alive device.
  • Super smooth high frequency silent drive motor control.
  • Switchable DC running
  • 4 digit addressing and 14, 28 or 128 speed steps.
  • 4 active functions each safe to 100mA
  • Support for all common programming & consist modes.
  • Back EMF with step-variable or Fn button control.
  • Fully adjustable motor control and function actions.
  • Easily locked once adjustment or set-up is complete.
  • All special lighting effects available
  • All functions able to be re-allocated (remapped) as required.
  • Heat-shrink insulated for short-free installation.
  • Economical enough to use as lighting decoders.
  • 2Amp peak power, 1A continuous, Functions 100mA

860001/NEM 652 Fixed wired harness

  • SKU : 860001

With the use of these 8-pin 652 sockets harnesses, enables you to fit dcc decoder to non dcc locomotive
allows non dcc trains to be converted to dcc without having to wire dcc decoder straight into the train, the socket is fitted with a adhesive pad to attach to the train in case a fault on the dcc decoder arises its easy to remove dcc decoder and replace within minutes

860001


860002/NEM 652 Socket only

  • SKU : 860002

With the use of these 8 pin dcc decoder socket, enables you to fit dcc decoder to non-dcc locomotive/car easy

860002


860003/NEM 652 Trailing wired harness

  • SKU: 860003

With the use of these 8-pin 652 sockets harnesses, enables you to fit dcc decoder to non dcc locomotive
allows non-dcc train to be converted to dcc without having to wire dcc decoder straight into the train, the socket is fitted with a adhesive pad to attach to the train in case a fault on the dcc decoder arises its easy to remove dcc decoder and replace within minutes

860003


860004/8PIN TO 21 PIN ADAPTOR

  • SKU : 860004

Making it easy for you to fit an NEM652 8 pin NMRA plug fitted decoder into a locomotive which has a 21MTC connector installed. Unlike other adapters, LaisDcc 21 pin adapters are already pre-wired with function 3 / Aux 1 / green wire connections and also have an easy to solder to connection point for function 4 / aux 2 / purple wire should it be needed.

860004


860006/NMRA Plug

  • SKU: 860006

860006


9-Pin JST Extension plug with wire

  • SKU: 860022

img_0236-mini    img_0234-mini

LaisDcc Next18/Nem662 Female connector/0.6USD/PCS Base on 1K piece MOQ



LaisDcc Next18/Nem662 Male connector/0.6USD/PCS Base on 1K piece MOQ

860027 DCC LED Resistor Board

SKU:860027

*Designed to save time, space, and to help maintain a cleaner DCC installation.

*Intended for use with DCC Mobile, Sound, and Lighting decoders requiring a hardwired installation with an output of 12V on the function common wire.

*Designed for use with most LED’s. Test your LEDs with a 12V power supply or a 9V battery with a 1K ohm 1/8 watt resistor wired inline on one of the leads prior to installation1. It contains eight 1K Ohm 1/8W SMD resistors for up to 8 lighting functions including headlight and reverse light. This compact board measures only 17mmX 8mm and is perfect for narrow hood diesel locomotives!

We are not responsible for damage caused to the LED’s or the board if the incorrect LED is used with this board. Please test your LED’s prior to using this board to confirm the 1K Ohm resistor provides enough or too much resistance.

Installation is a breeze…

Simply solder the blue wire from the decoder to the ” Blue Wire (+)” pad on the board and solder the wire to anode of each LED from the solder pads marked for each function (FL/RL/1/2/3/4/5/6) and then solder the appropriate wire from the decoder to the negative lead of the LED corresponding to that function!
